BYD Battery Box Premium LVS 4 kWh

Description

BYD Battery Box Premium LVS 4 Overview

BYD is a huge company. And a relative newcomer to the scene of solar batteries. However they have been involved in batteries for decades, their major focus having been Electric Vehicles (EVs). Just take a look at one of their most recent EVs and you might have to agree that they are doing some things right! BYD Solar batteries have been on the market in Australia long enough to know that they are a solid contender. Not only that but they have probably the sharpest price point out there. This is a decent review of the BYD B-Box series of batteries if you’re interested.

About BYD

BYD is a high-tech company devoted to technological innovations for a better life. BYD was founded in February 1995, and after more than 20 years of fast growth, the company has established over 30 industrial parks worldwide and has played a significant role in industries related to electronics, automobiles, new energy and rail transit. From energy generation and storage to its applications, BYD is dedicated to providing zero-emission energy solutions. BYD is listed on the Hong Kong and Shenzhen Stock Exchanges, with revenue and market capitalization each exceeding RMB 100 billion.



BYD has developed PV+Storage, a new business model focused on renewable energy production, storage and applications, designed to change the world by leveraging new energy solutions.

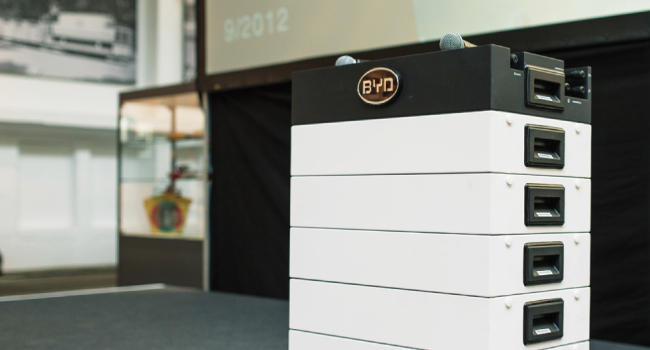

The BYD Battery Box Premium LVS 4 kWh is BYD’s most sophisticated LiFePO4 Solution.

It has an IP55 Enclosure Protection Rating and can be scaled to 256kWh. The Battery Box Premium LVS 4 Energy Storage solution is the perfect system for Commercial, Industrial and Residential Solutions.

Up to 64 systems may be connected in parallel in order to build storage capacity of up to 256kWh!



Weight [kg] 64



BYD Battery Box Premium LVL 15.4 Characteristics
Battery Module	1 modules
Usable Energy1	4kWh
Max Continuous Output Current2	65 A
Peak Output Current2	90 A, 5 sec.
Nominal Voltage	51.2 V
Operating Voltage Range	40 to 57.6 V
Operating Temperature	-10 °C to +50 °C
Battery Cell Technology	Lithium Iron Phosphate (cobalt-free)
Communication	CAN / RS485
Enclosure Protection Rating	IP55
Round-trip Efficiency	≥95%
Scalability3	Max. 64 systems in parallel / 256 kWh
Certification & Safety Standard	VDE2510-50 / IEC62619 / CE / RCM / UN38.3
Applications	Grid tied (hybrid) / Grid with backup / Off Grid
Warranty4	10 years
Compatible Inverters	Refer to BYD Battery-Box Premium Inverter Compatible List and Minimum Configuration List

1 DC Usable Energy, Test conditions: 100% DOD, 0.2C charge & discharge @ +25 °C. System Usable Energy may vary with different inverter brands

2 Charge/discharge derating will occur between -10 °C to +5 °C

3 Parallel tower function only available for 1 to 4 battery modules per tower. LVS 20.0 and LVS 24.0 can only be used as a single tower.

4 Conditions apply. Refer to BYD Battery-Box Premium Limited Warranty Letter.
